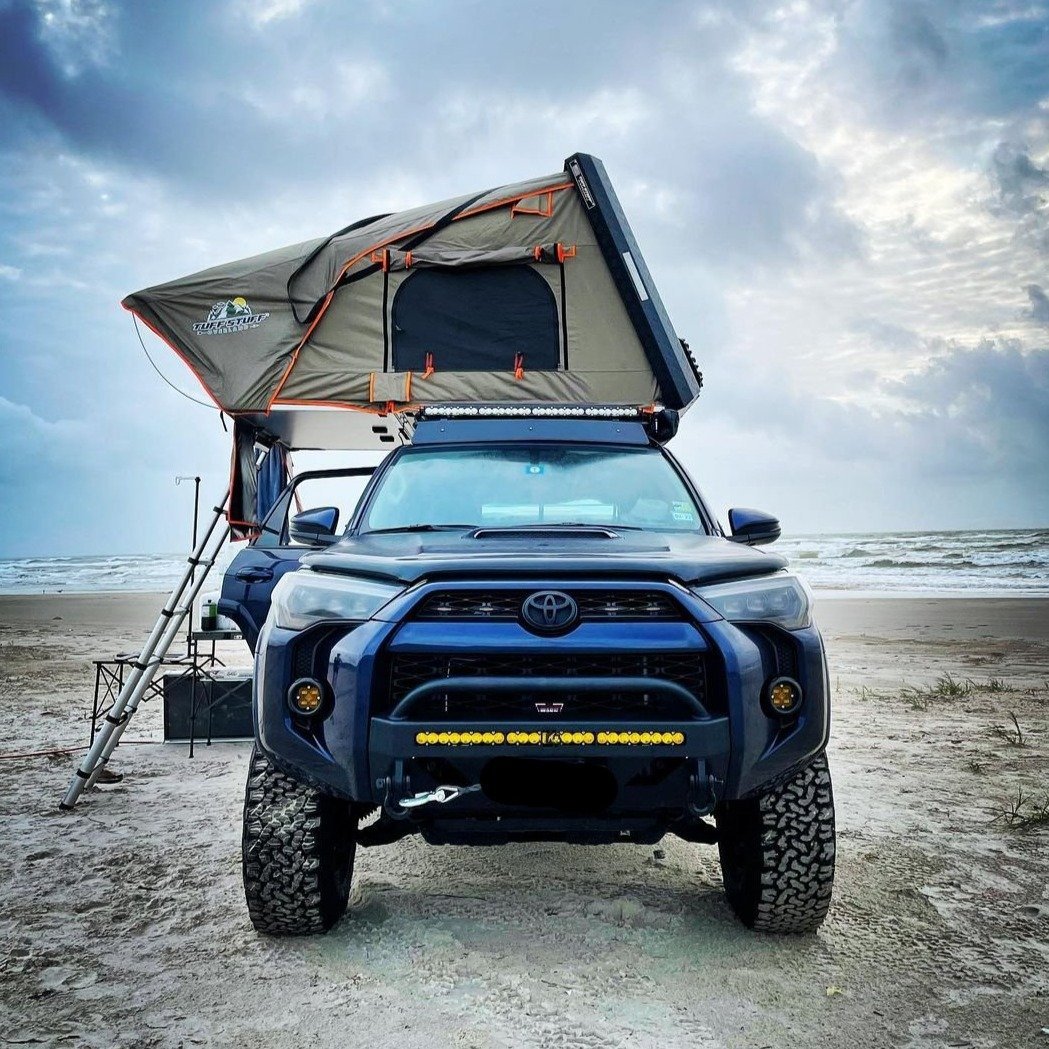

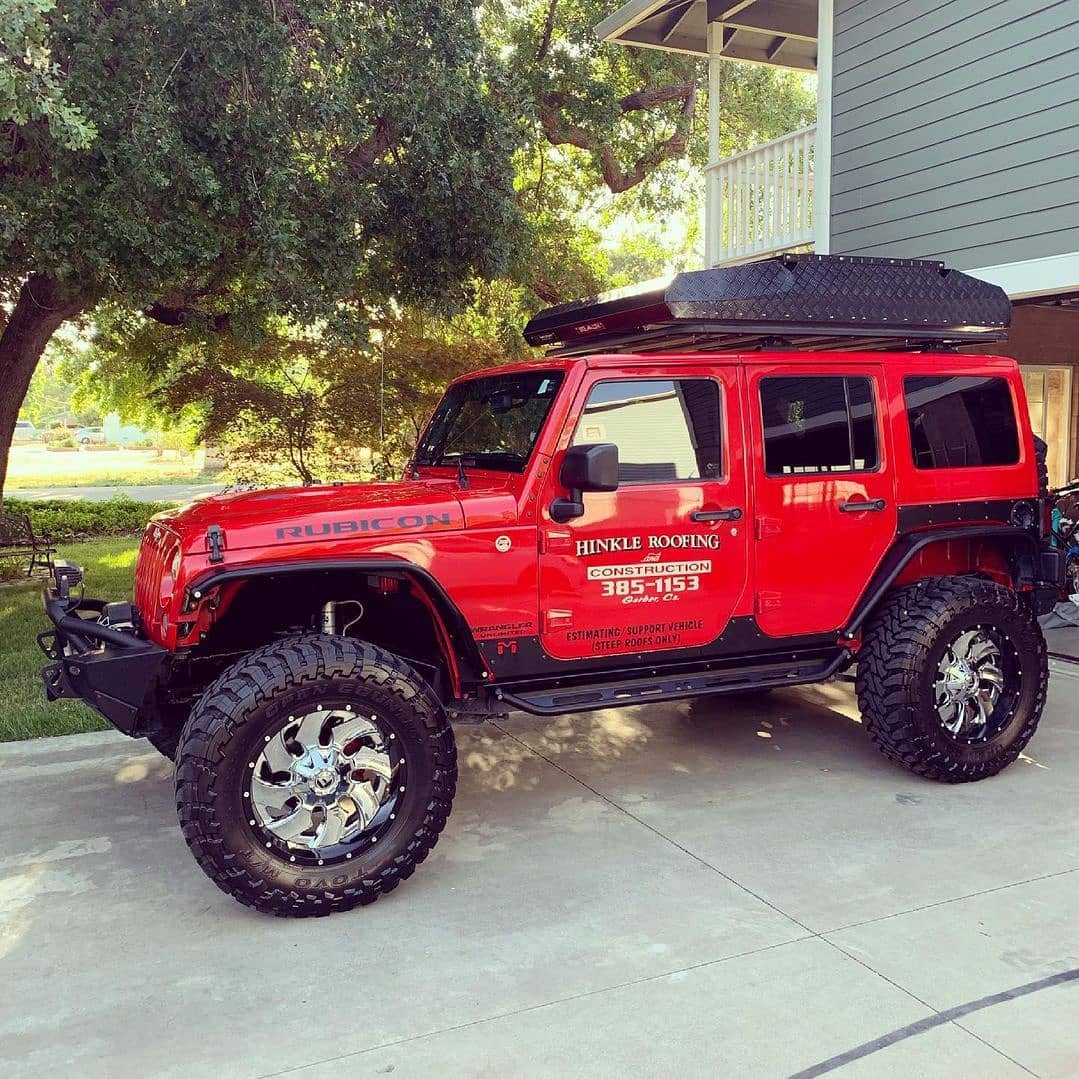

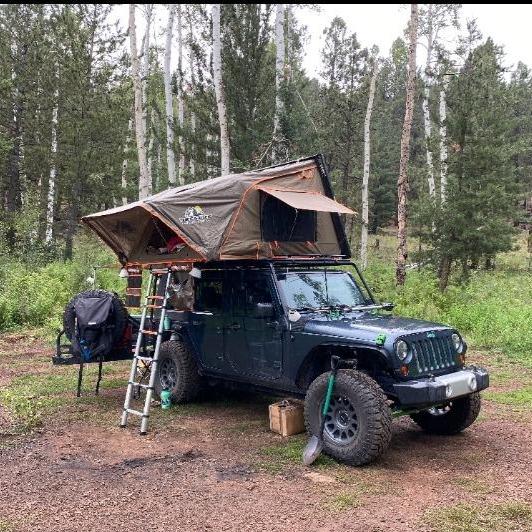

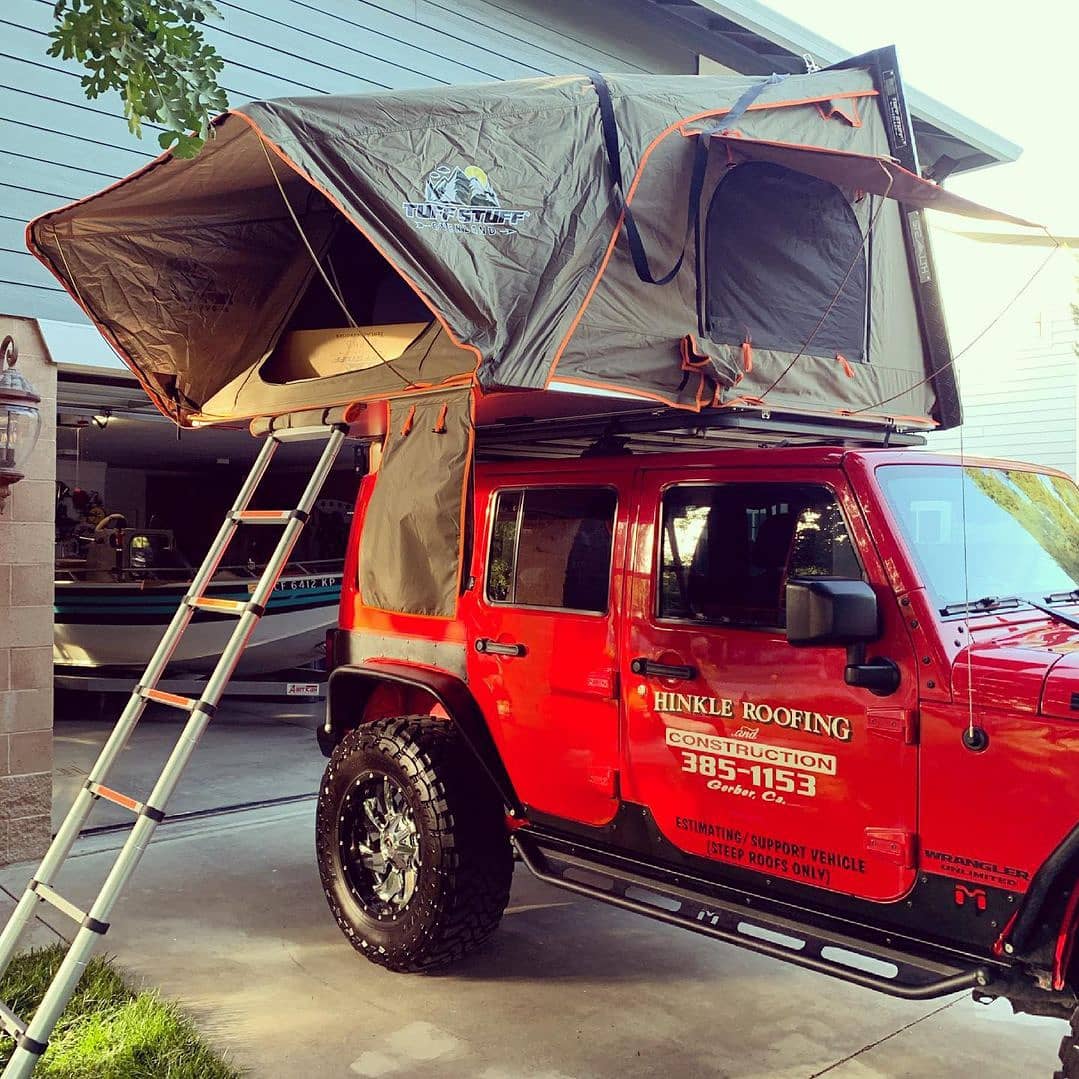

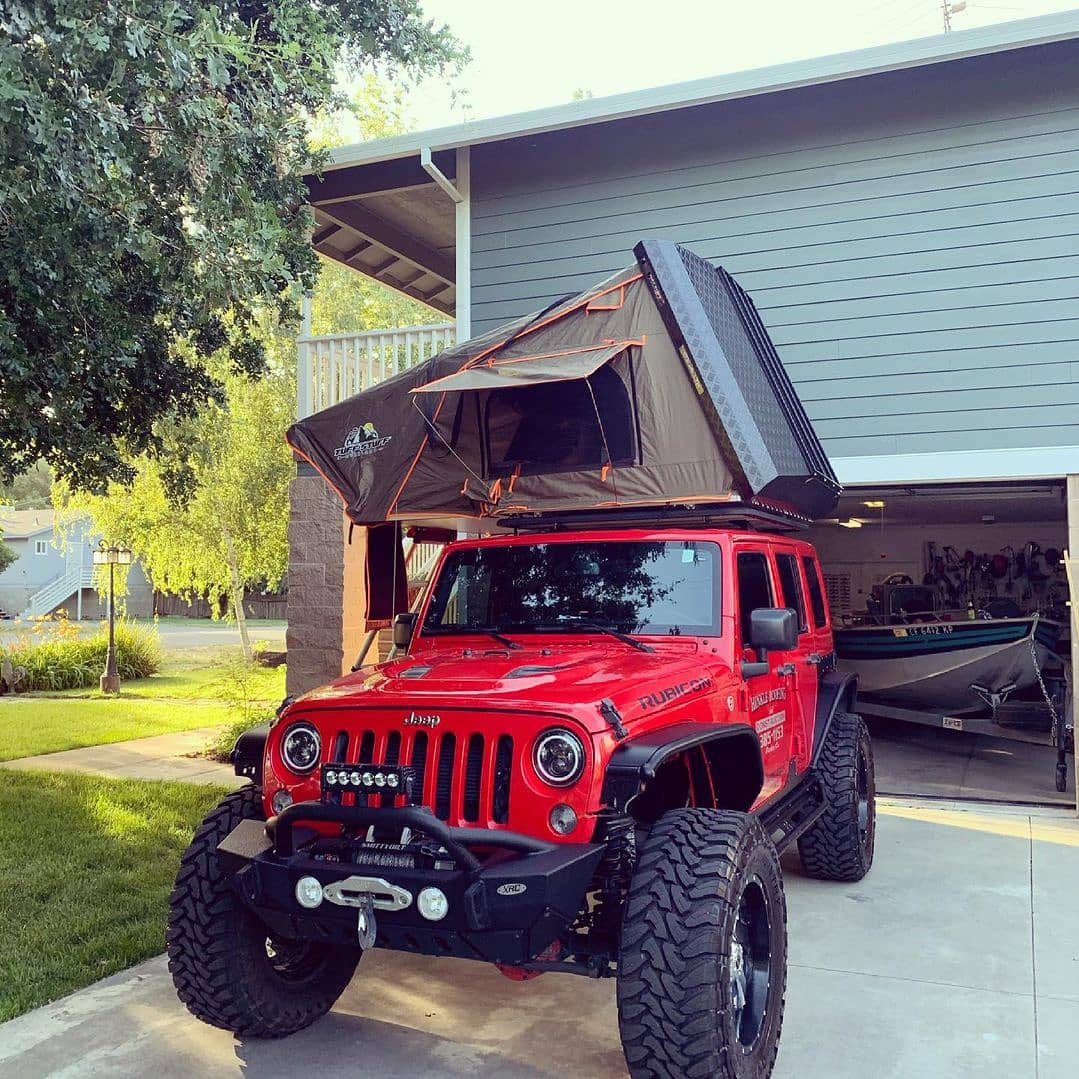

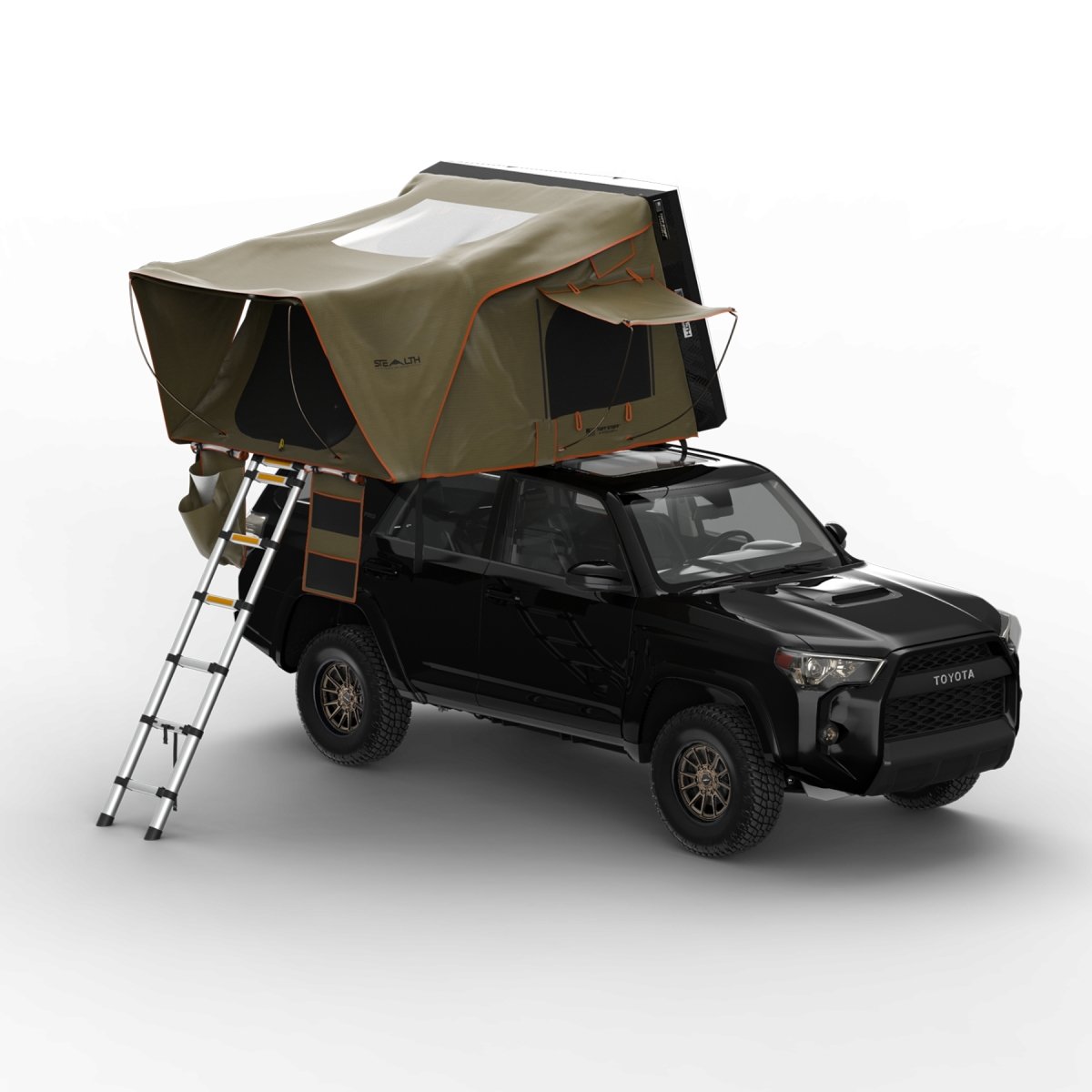

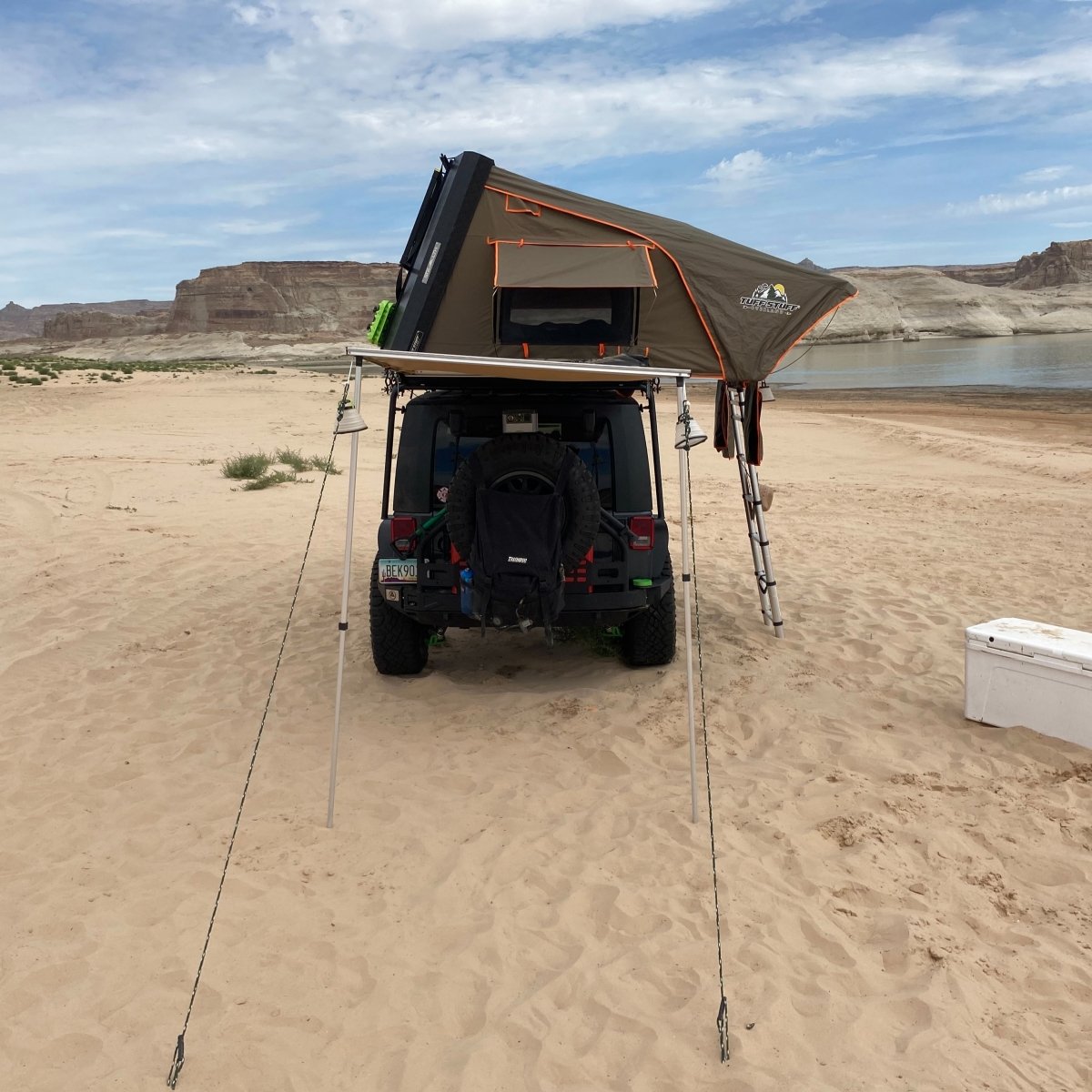

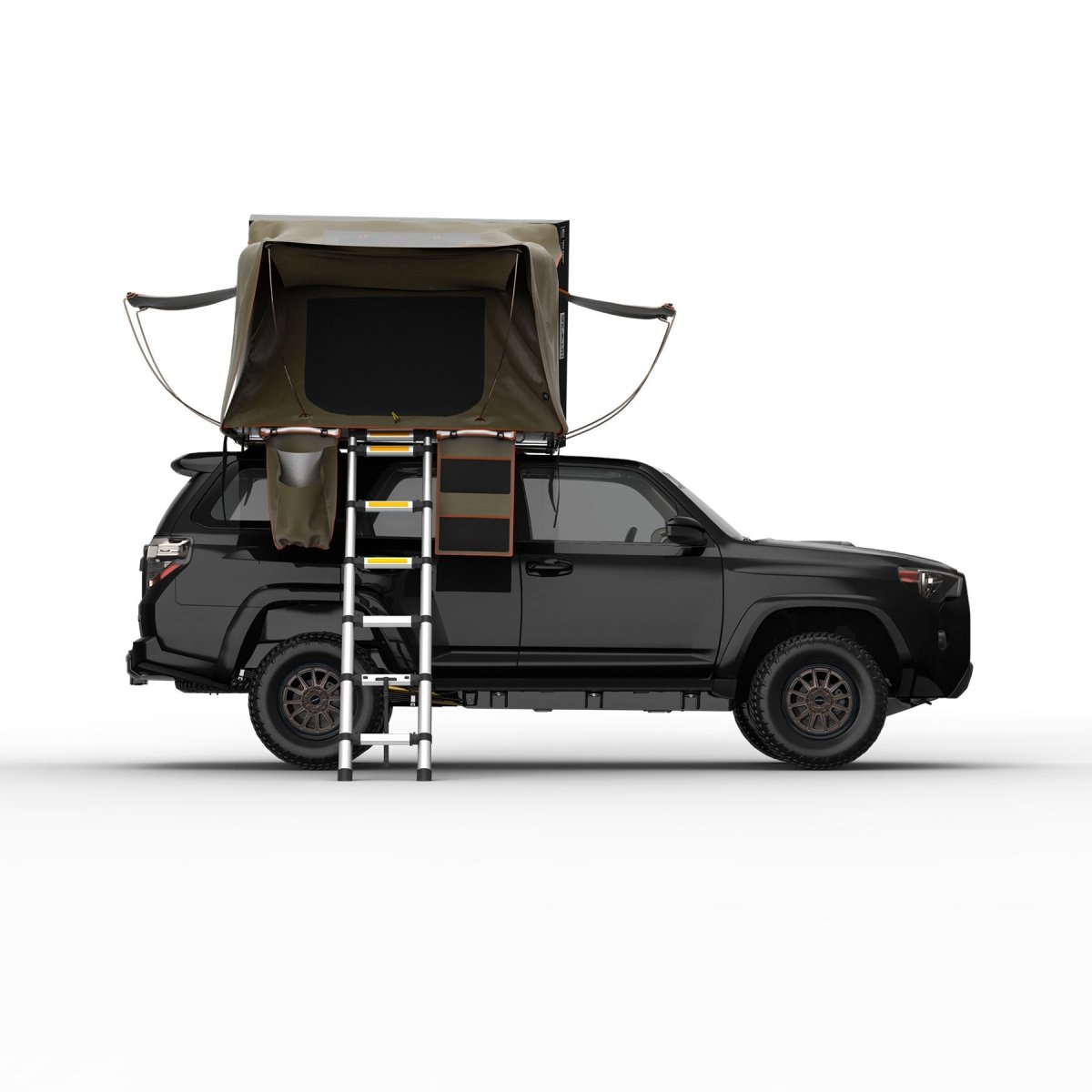

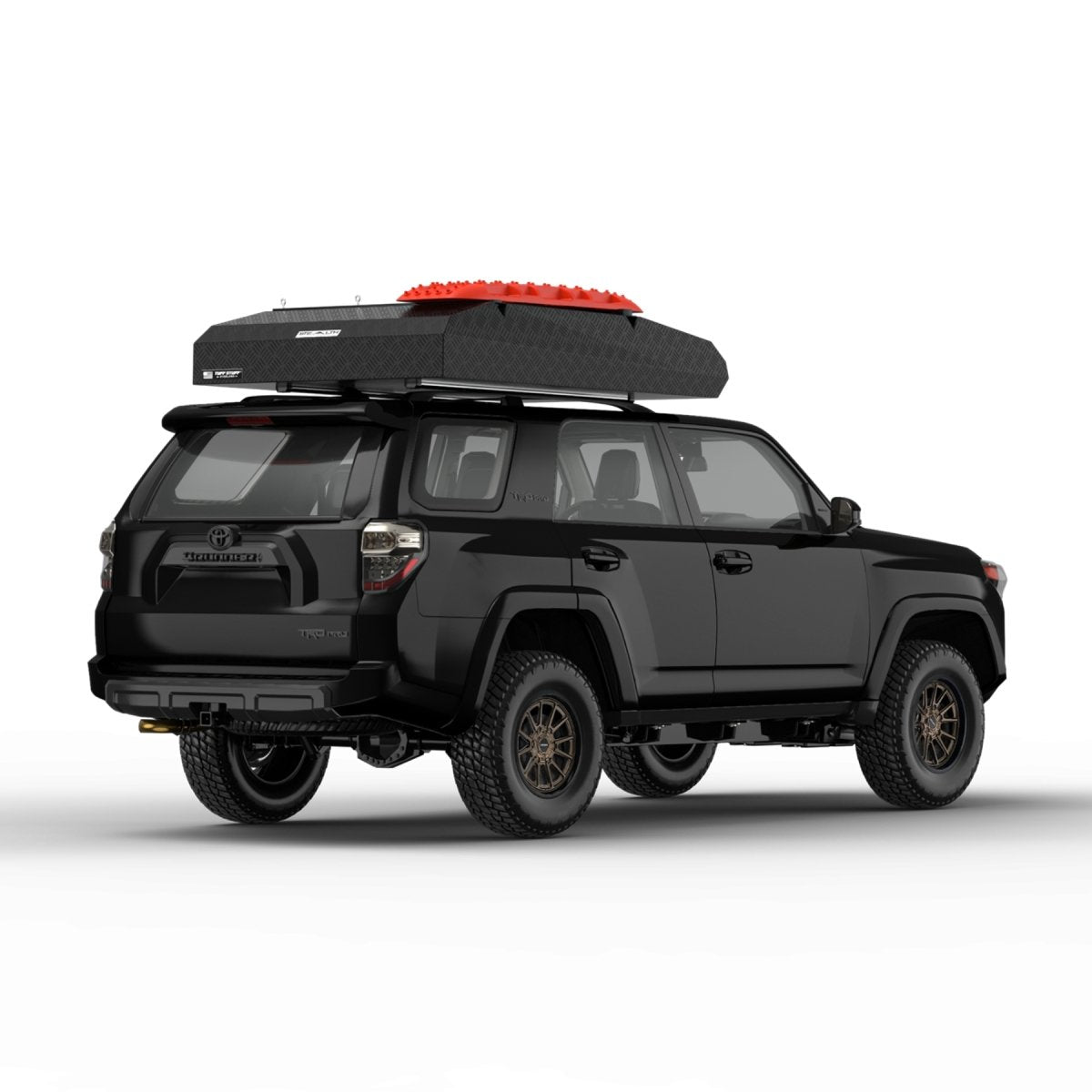

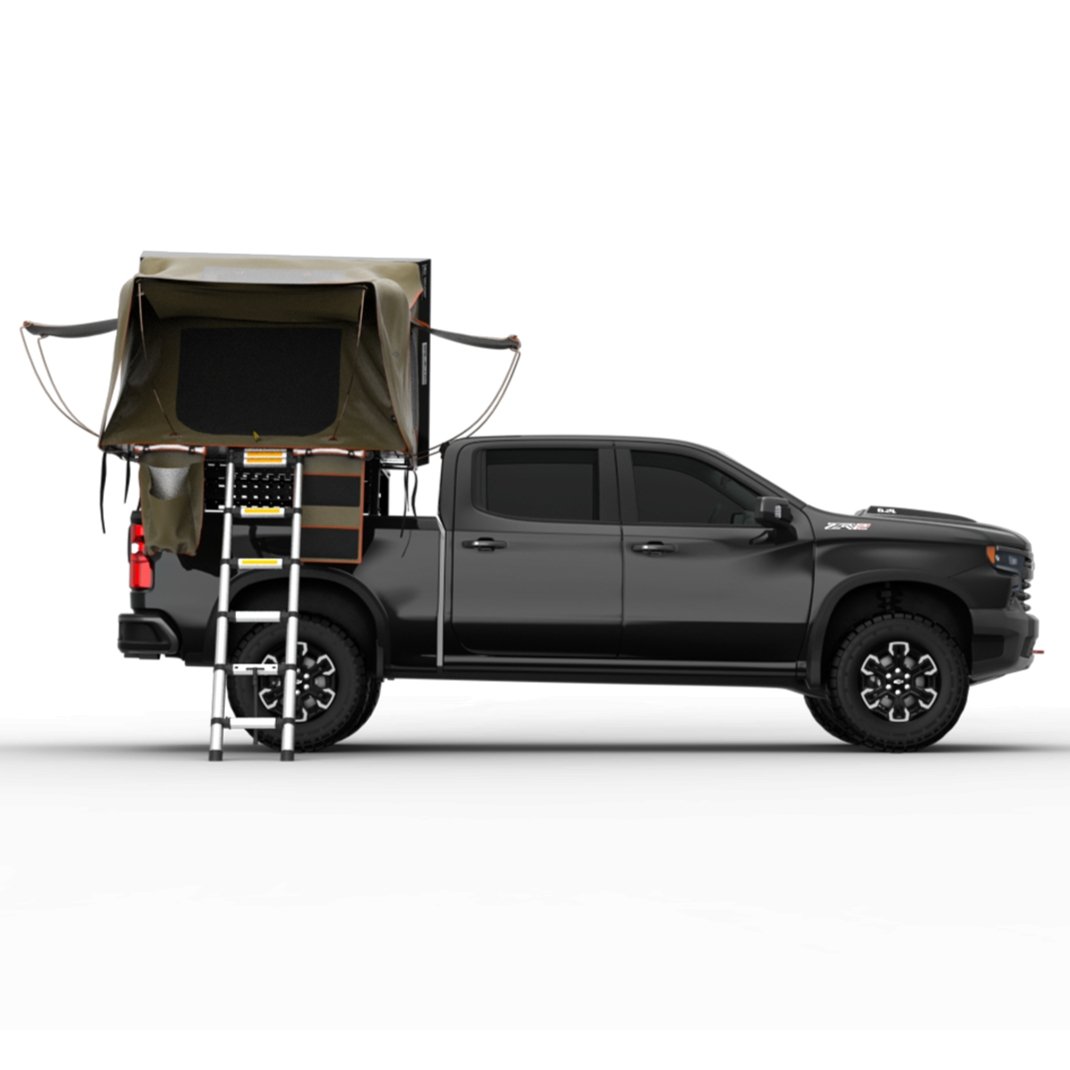

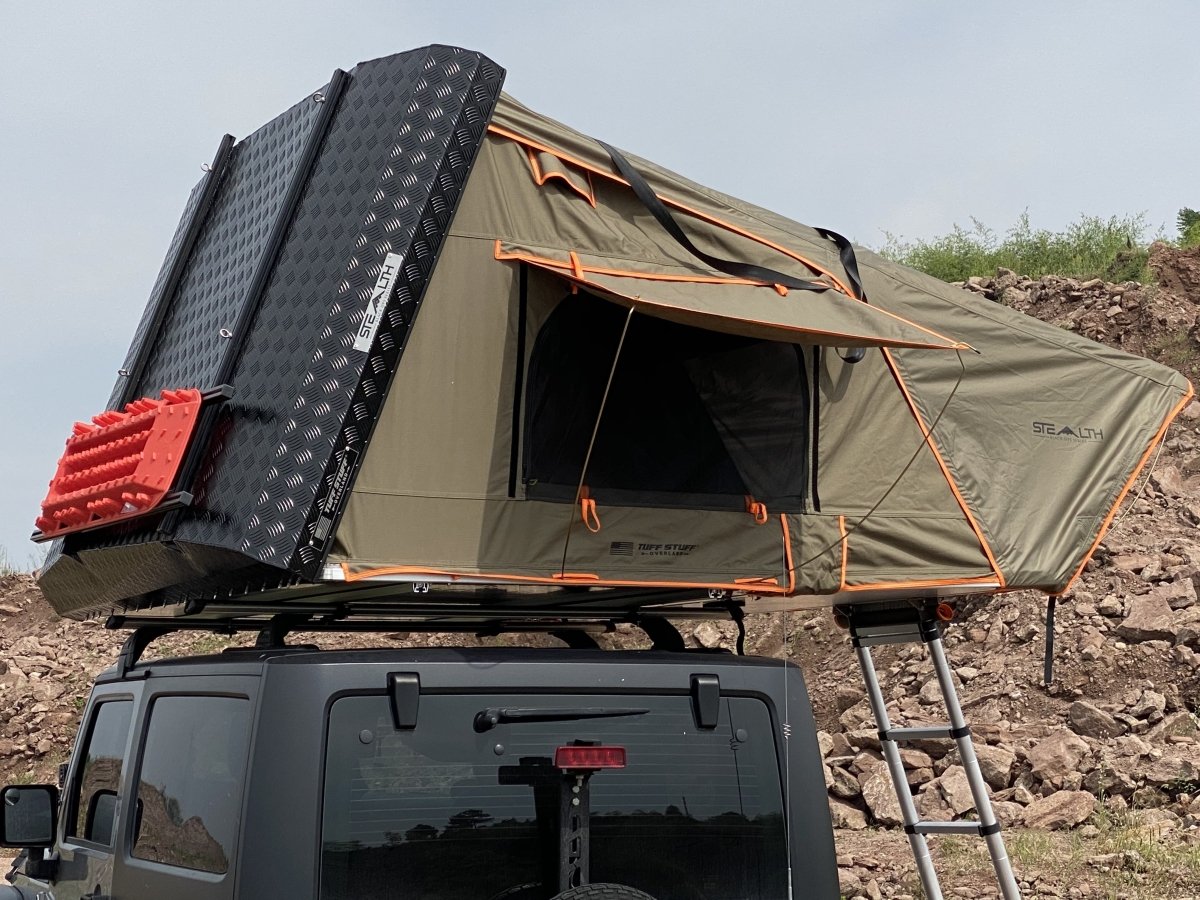

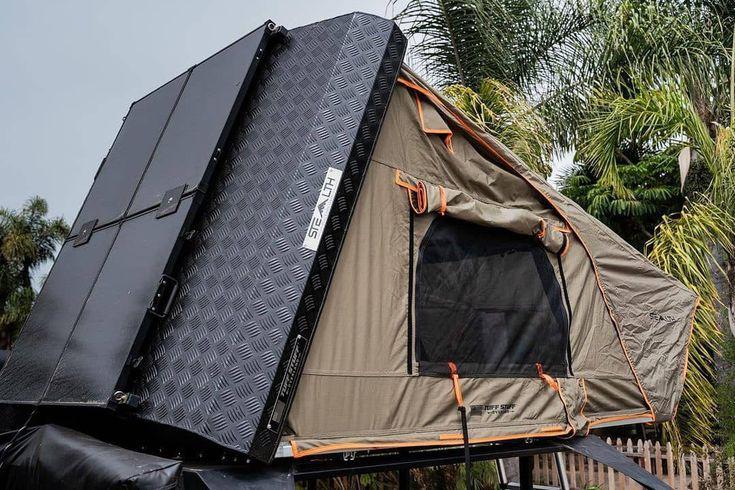

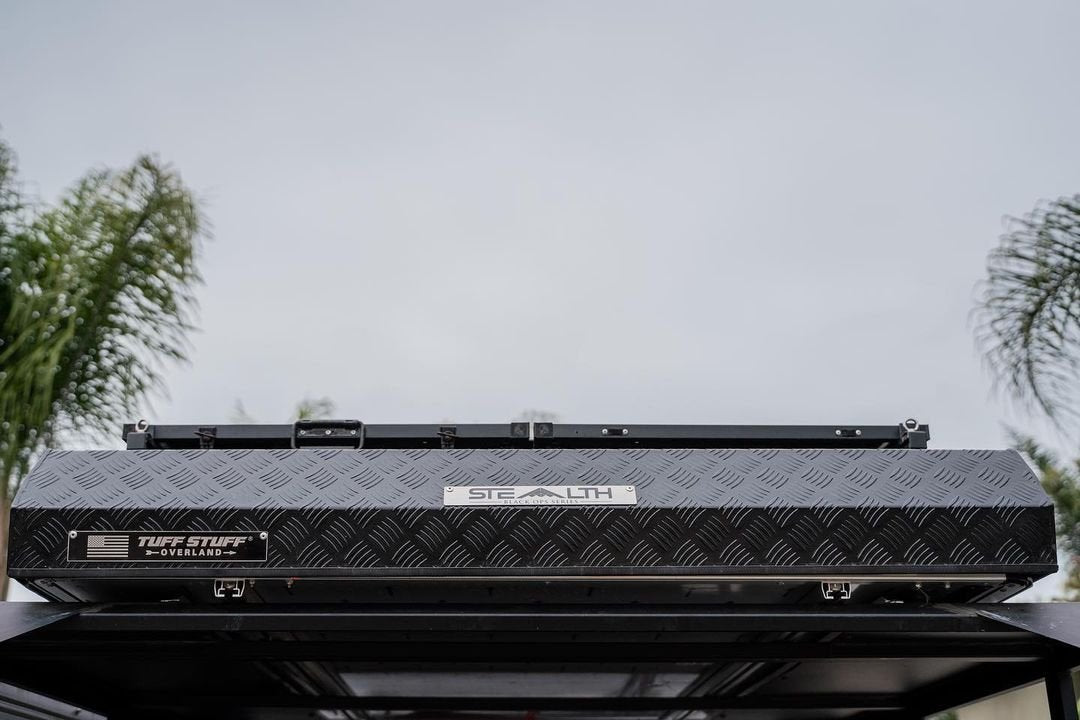

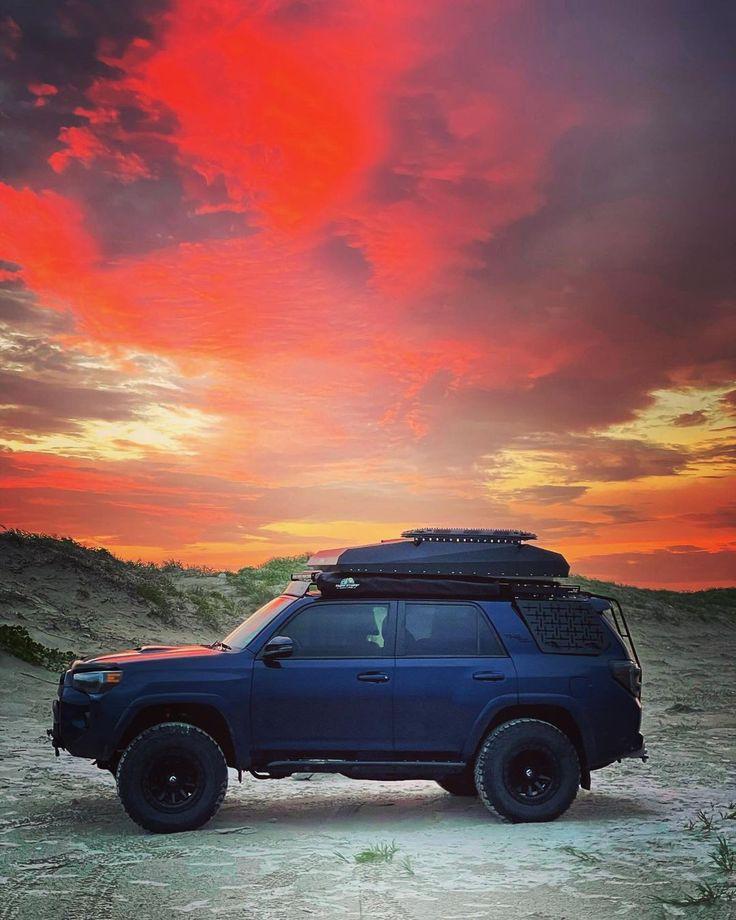

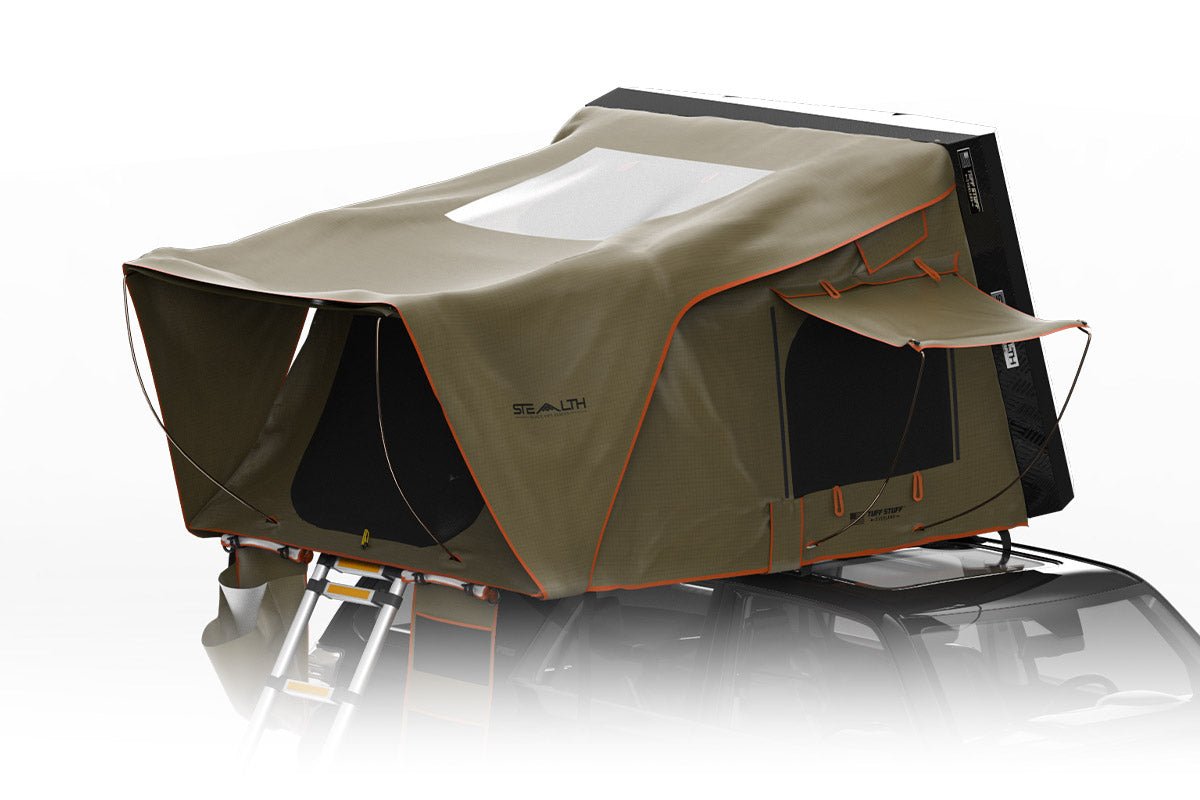

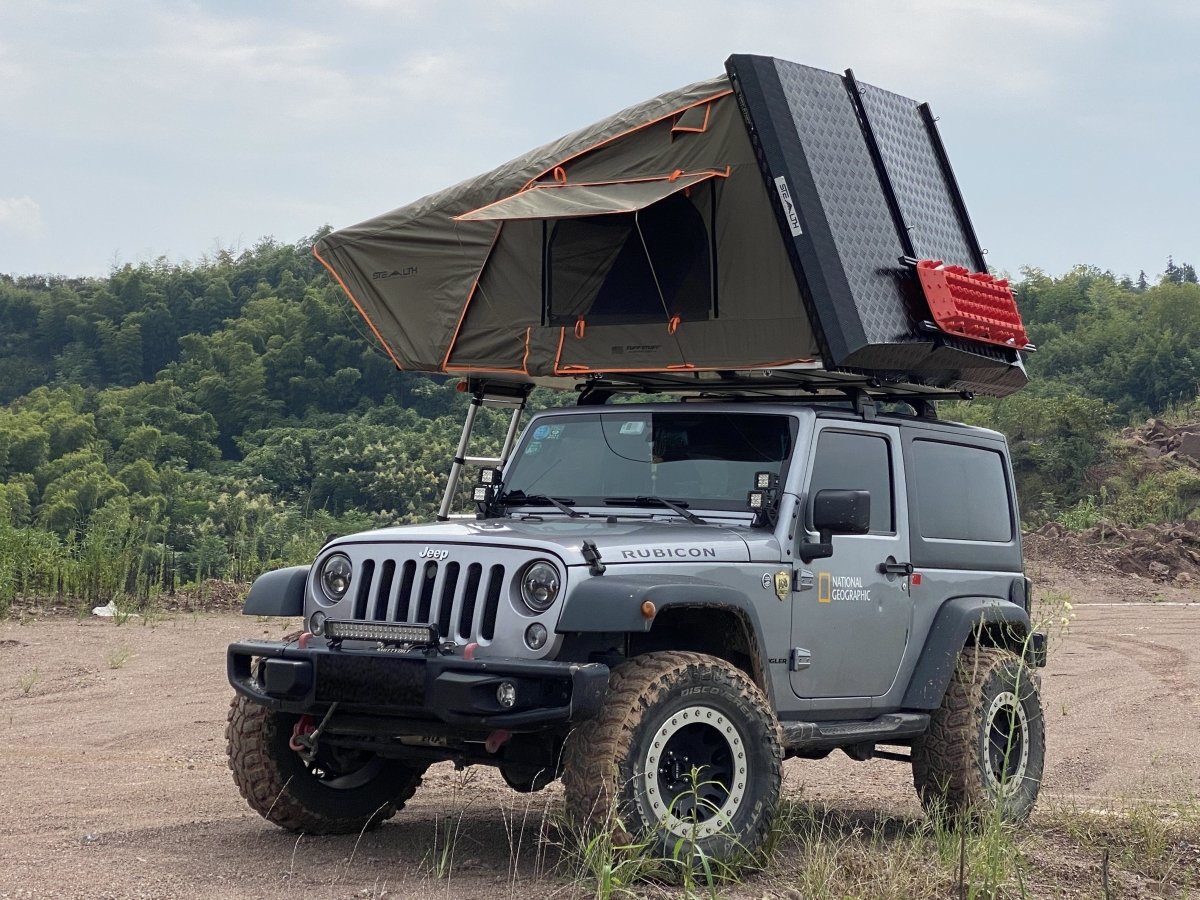

Stealth Hardshell Rooftop Tent, Aluminum, 3 Person, Black

The Tuff Stuff Stealth Roof Top Tent sleeps 3+ people and was built to last. Take the Stealth on any terrain in any weather. Camp in any season, drive under low-hanging branches, or bump a rocky ledge; Mother Nature has nothing on the aluminum shell.

Features & Benefits

• A rugged aluminum hard-shell, four-season tent with room for three people
• Ultra-fast setup time takes less than two minutes
• Massive 71 x 87-inch mattress (bigger than a King) is 1.6 inches thick
• Manufactured from high-quality 280G poly-cotton windproof fabric
• Heavy-duty YKK zippers with custom para-cord pulls
• Includes a 210D poly-oxford rainfly
• Three windows with awnings and mesh screens for excellent ventilation and views
• Built-in skylight for star gazing
• Built-in internal and external LED light strips
• Designed to open to the passenger side only
• All aluminum frame, ladder, and roof rack mounts
• All necessary hardware for complete installation (including tools

Specifications

• Sleeping Capacity: 2-3 People
• Open dimensions L/W/H:  75x87x52 inches

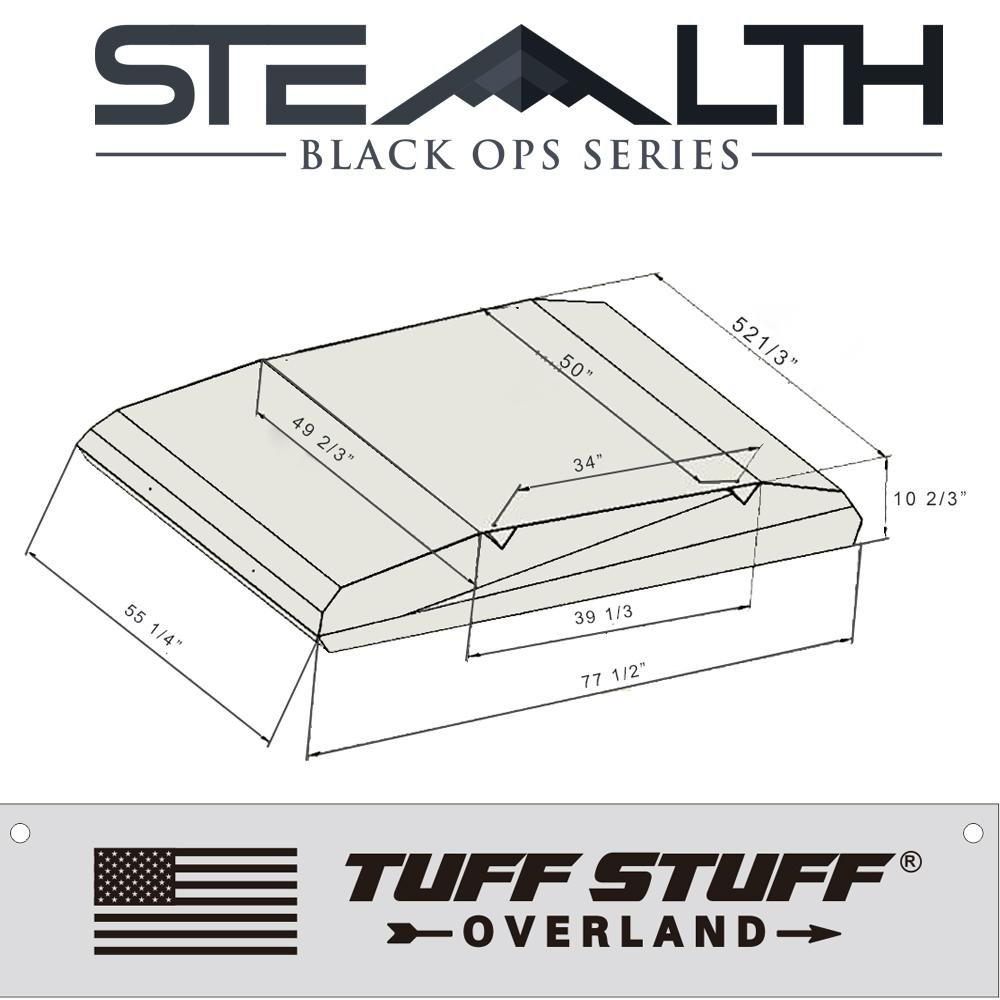

• Closed dimensions L/W/H: 75x55x13 inches (+3" with storage rack)
• Mattress L/W/H: 71x87x 1.6 inches
• Weight: 221 Lbs
• Weight Capacity: 900 Lb
• Rack Capacity: 110 Lb
• Rack Hardware Included. T-Slot bolts size M6 x 16mm 3030 Drop-In Bolt (for 3030 Series Standard 8mm T-Slot Aluminum Extrusion Profile)
• Tent Material: 280 G Poly/Cotton Rip-Stop
• Rainfly Material: 210D Polyester/Oxford PU coated 5000mm
• Floor: Heavy-duty aluminum honeycomb
• Shell: Aluminum
• Zippers: YKK with custom para-cord pulls (reduces annoying dinging in wind)
• LED Light: Amber & White light (inside and outside)
• Windows: 3 window openings w/ mesh screens & window rods Skylight with mesh and solid panel
• Window Awnings: included (Roll-up or zip off)
• Telescoping Ladder: 7.5' tall w/angled steps (included)
• Mounting hardware: Mounting hardware: Stainless steel (Included)
• Annex room: Optional

NOTE: The Stealth™ tent is designed to open to the passenger side

Instructions

1. Mounting your tent requires a minimum of 2 people for lifting. The Stealth can be mounted and opened from either the driver or passenger side but we designed it to open to the passenger side. There is a slight taper on one end to make it as aerodynamic as possible.

2. Using the supplied hardware and mounting plates, slide the hardware into the channel so there are 2 bolts per corner (one in front and one behind the vehicles crossbars)

3. Run the bolts through the mounting brackets holes, thread nuts onto each bolt.

4. Confirm you are happy with the position of the tent, vehicle balance, and appearance. Tighten all nuts to tighten the brackets until the tent cannot move.

5. Undo the buckles on the side of the tent, push up on the handle to actuate the hydraulic rams to open the tent hard shell, Pull out on the telescoping ladder until it is fully extended- pull down on ladder until the folding side of the tent has opened and extended fully.

6. Reposition the ladder to your desired height/angle.

7. Install the supplied tension rods on the overhang of the tent & windows, open the door and enjoy!
